更多>>美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振,美國Slicon晶振公司,芯科晶振,Si501振蕩器系列為傳統晶體振蕩器提供單片,基于mems的IC替代品。Silicon Laboratories的CMEMS技術將標準CMOS + MEMS結合在單個單片IC中,提供集成,高質量和高可靠性的振蕩器。每個設備都經過工廠測試和配置,以保證性能符合數據表規格,包括電壓,工藝,溫度,沖擊,振動和老化。高品質晶振,低損耗晶振,歐美晶振,遙遙領先晶振,室外6G基站晶振,汽車電子晶振,汽車輔助駕駛晶振,高精度晶振,3225晶振,小體積晶振,MEMS晶振,貼片晶振,
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
參數 | 標志 | 試驗條件 | 最小值 | 典型的 | 最大值 | 單位 |
頻率范圍 | CLK | 0.032 | — | 100 | MHz | |
時鐘周期 | CLK | 1/FCLK | 31,250 | — | 10 | ns |
總穩定性 | STAB | –20 | — | +20 | ppm | |
–30 | — | +30 | ppm | |||
–50 | — | +50 | ppm | |||
初始精度 | F | Measured at 25 ?C at the time of shipping | — | ±2 | — | ppm |
啟動時間 | SU | From VDD crossing 1.71 V to first clock output | — | 2.5 | 4 | ms |
回復時間 | RUN | From Sleep mode | — | 2.5 | 5 | ms |
From Doze mode | — | 1.7 | 2.55 | ms | ||
From Stop mode5 | — | — | 1.5 x TCLK + 35 | ns | ||
輸出禁用時間 | TD | To Sleep/Doze mode, from output running | — | — | 225 | µs |
To Stop, from output running | — | — | 1.5 x TCLK + 35 | ns | ||
頻率更新時間 | NEW_FREQ | — | — | 5 | ms |
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振

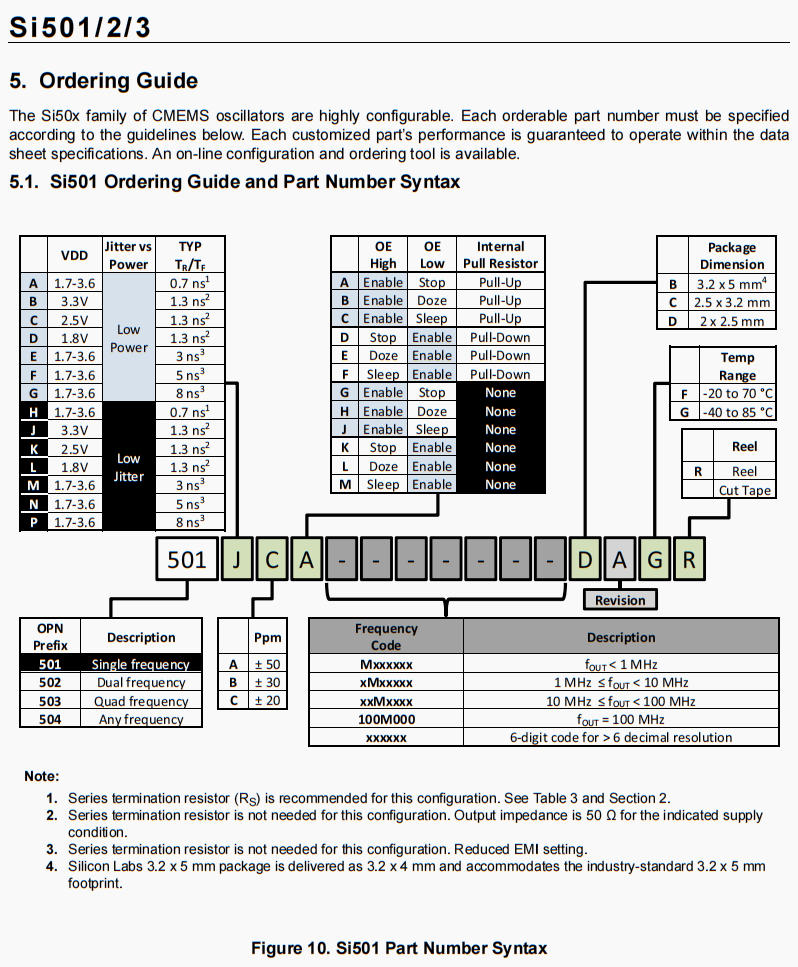

Silicon原廠編碼 | 生產商品牌 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 | 工作溫度 |
501AAA27M0000DAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -20°C ~ 70°C |
501AAA27M0000DAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
501JAA24M0000DAF | Silicon Labs | 24 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
501AAA27M0000CAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -20°C ~ 70°C |
501JAA40M0000CAF | Silicon Labs | 40 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
501JAA25M0000BAF | Silicon Labs | 25 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
501HCA27M0000DAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501BCA16M0000BAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501AAA24M0000BAG | Silicon Labs | 24 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
501AAA27M0000BAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
501JAA24M0000BAG | Silicon Labs | 24 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
501JAA40M0000BAG | Silicon Labs | 40 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
501ACA10M0000BAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501JAA25M0000BAG | Silicon Labs | 25 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
501HCA27M0000BAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCA27M0000DAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501BCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501BCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501BCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501BCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501BCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501BCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501JCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501JCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501JCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501HCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501HCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501HCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501ABA8M00000BAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
501ABA8M00000BAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
501ABA8M00000CAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
501ABA8M00000CAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
501ABA8M00000DAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
501ABA8M00000DAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
501ACA10M0000BAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501ACA10M0000CAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501ACA10M0000CAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501ACA10M0000DAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501ACA10M0000DAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501JCA10M0000BAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCA10M0000BAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501JCA10M0000CAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCA10M0000CAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501JCA10M0000DAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501JCA10M0000DAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501HCA12M0000BAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCA12M0000BAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501HCA12M0000CAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCA12M0000CAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501HCA12M0000DAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
501HCA12M0000DAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
501BCA16M0000BAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501BCA16M0000CAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501BCA16M0000CAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501BCA16M0000DAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
501BCA16M0000DAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
501BAA16M0000BAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
501BAA16M0000BAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
501BAA16M0000CAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
