首頁晶振官方博客 ECS-2520MVQ-1250-BS-TR多電壓晶振非常適合汽車和物聯網應用

ECS-2520MVQ-1250-BS-TR多電壓晶振非常適合汽車和物聯網應用

來源：http://konuaer.com 作者：康華爾電子 2023年02月13
ECS晶振在ECS-2520MVQ MultiVolt中發布了一個額外的零件號銩提供擴展溫度范圍的石英晶體振蕩器系列。ECS-2520MVQ-1250-BS-TR是一款125MHz AEC-Q200 SMD多電壓晶體振蕩器，在-40°C至+125°C的擴展溫度范圍內具有50ppm的穩定性。該電子元件可以在1.8V、2.0V、3.0V或3.3V的靜態電源下工作，電源電壓范圍為1.6V至3.3V。

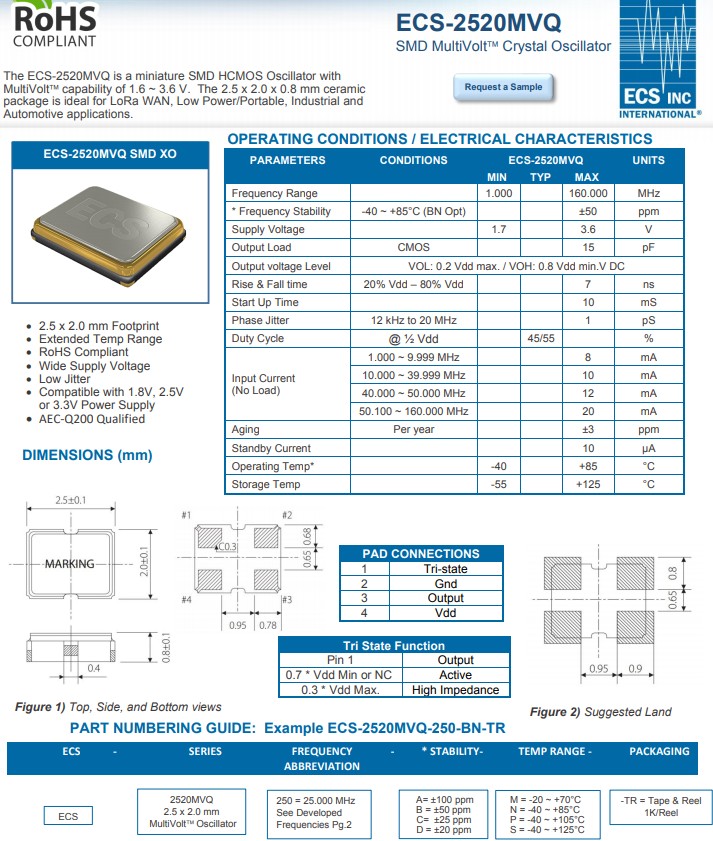

ECS的ECS-2520MVQ是一款A(yù)EC-Q200 SMD多電壓晶振系列，采用2.5mmx2.0mmx0.8mm 四腳貼片晶振陶瓷封裝。該器件提供1MHz~160MHz的頻率范圍和50ppm的標準穩定性，以及20ppm、25ppm和100ppm的額外穩定性選項。“CN”選項在-40°C～+85°C的標準工業溫度范圍內提供25ppm的穩定性。該振蕩器系列通過了AEC-Q200認證和IATF 16949認證，并提供擴展的溫度范圍。多伏特銩晶體振蕩器與靜態1.8V、2.0V、3.0V和3.3V電源兼容，并可在1.6V ~ 3.3V電源范圍內工作，ECS-2520MVQ-1250-BS-TR多電壓晶振非常適合汽車和物聯網應用。
圖像 零件號碼 頻率 頻率穩定度

ECS-2520MVQ-1250-BS-TR

 125MHz 50ppm

ECS-2520MVQ-250-BS-TR

 25MHz 50ppm
ECS-2520MVQ-800-BN-TR 80MHz 25ppm
ECS-2520MVQ-320-CN-TR 32MHz 25ppm
ECS-2520MVQ-120-BP-TR 12MHz 50ppm
ECS-2520MVQ-240-BP-TR 24MHz 50ppm
ECS-2520MVQ-250-CN-TR 25MHz 25ppm
ECS-2520MVQ-250-BP-TR 25MHz 50ppm
原廠代碼 ECS晶振 型號 頻率 工作溫度
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S33-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S33-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S33-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S33-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S33-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S33-400-FN-TR ECS Crystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S18-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S18-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S33-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S33-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S33-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S33-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S33-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S25-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S25-250-FN-TR ECS Crystal SMD晶振 25MHz -40°C ~ 85°C
ECS-2520S25-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S33-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S33-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S33-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S33-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S33-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S33-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S33-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-200-FN-TR ECS Crystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520MVQ-1250-BS-TR多電壓晶振非常適合汽車和物聯網應用
特點：
小體積尺寸：2.5x 2.0x 0.8mm4焊盤陶瓷封裝有源晶振
多伏特銩兼容1.6V至3.63V電壓
兼容1.8V、2.5V、3.0V和3.3V電源電壓
穩定性選項:20ppm、25ppm、50ppm和100ppm
低抖動1pS
溫度范圍選項：-20°C ~ 70°C，-40°C ~ 85°C，-40°C ~ 105°C和-40°C ~ 125°C
符合AEC-Q200標準
IATF 16949認證產品
符合RoHS和REACH標準
