首頁晶振官方博客 無源晶振Q22FA23V0054800汽車電子中控專用晶振

無源晶振Q22FA23V0054800汽車電子中控專用晶振

來源：http://konuaer.com 作者：康華爾電子 2022年09月30

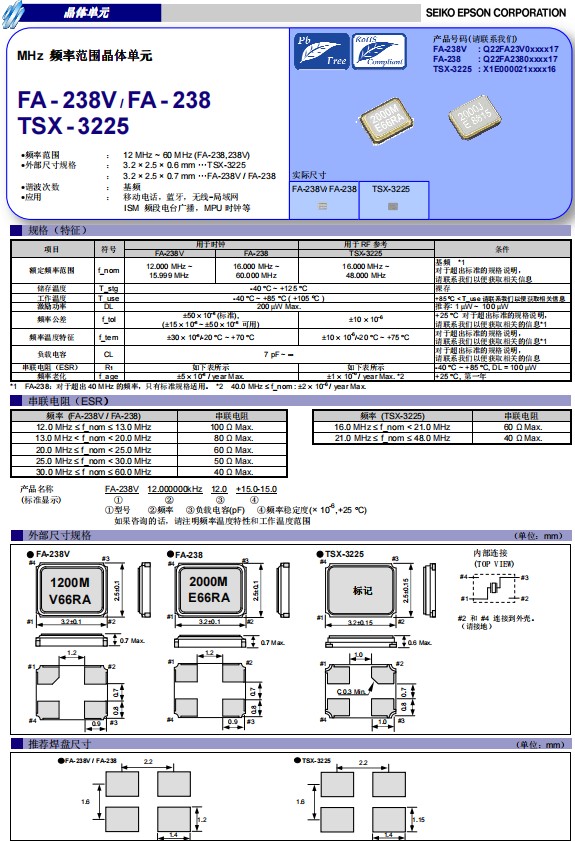

日本愛普生晶振FA-238V是一款小體積尺寸3.2x2.5mm四腳貼片晶振，無源晶振，石英晶體諧振器，F(xiàn)A-238V頻率范圍12.000MHz至15.9999MHz之間，可以在-40℃至+85℃（+105℃）溫度內穩定工作，該產品具有超小型，輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，3225mm體積貼片晶振，該產品已被確定的高信賴性最適合用于汽車電子部件，在極端嚴酷的環境條件下也能發揮穩定的起振特性。滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。被廣泛用于移動通訊，智能手機，平板電腦，汽車電子，移動電話，無線藍牙，ISM頻段電臺廣播，MPU時鐘等.
無源晶振Q22FA23V0054800汽車電子中控專用晶振,Q22FA23V0051900,耐高溫晶振
產品編碼 貼片晶振 型號 頻率 負載電容 精度 頻率公差 工作溫度
Q22FA23V0001200 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-50ppm +/-30ppm -40to+80°C
Q22FA23V0001800 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0002200 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0002600 3.2x2.5x0.7mm FA-238V 13.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0002700 3.2x2.5x0.7mm FA-238V 14.745600MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0002800 3.2x2.5x0.7mm FA-238V 12.000000MHz 15pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0002900 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0003000 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-30ppm +/-50ppm -20to+60°C
Q22FA23V0003300 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0003700 3.2x2.5x0.7mm FA-238V 14.318180MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0004400 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0004800 3.2x2.5x0.7mm FA-238V 13.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0005200 3.2x2.5x0.7mm FA-238V 13.560000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0006800 3.2x2.5x0.7mm FA-238V 14.318000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0006900 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm +/-15ppm -20to+70°C
Q22FA23V0008200 3.2x2.5x0.7mm FA-238V 14.318180MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0008500 3.2x2.5x0.7mm FA-238V 12.288000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0008600 3.2x2.5x0.7mm FA-238V 14.745600MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0009500 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0010300 3.2x2.5x0.7mm FA-238V 14.318180MHz 12.5pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0010600 3.2x2.5x0.7mm FA-238V 12.000000MHz 11pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0010700 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-50ppm +/-50ppm -40to+85°C
Q22FA23V0011400 3.2x2.5x0.7mm FA-238V 14.318180MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0011900 3.2x2.5x0.7mm FA-238V 12.500000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0012300 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-20ppm +/-30ppm -40to+85°C
Q22FA23V0013100 3.2x2.5x0.7mm FA-238V 12.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0013600 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0014400 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm +/-30ppm -20to+70°C

Q22FA23V0048500 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-10ppm +/-20ppm -10to+95°C
Q22FA23V0048600 3.2x2.5x0.7mm FA-238V 14.745600MHz 10pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0049800 3.2x2.5x0.7mm FA-238V 13.333000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0050400 3.2x2.5x0.7mm FA-238V 12.288000MHz 8pF +/-20ppm +/-30ppm -20to+70°C
Q22FA23V0050500 3.2x2.5x0.7mm FA-238V 12.288000MHz 8pF +/-20ppm +/-20ppm -20to+70°C
Q22FA23V0051300 3.2x2.5x0.7mm FA-238V 15.980000MHz 8pF +/-15ppm +/-15ppm -20to+70°C
Q22FA23V0051900 3.2x2.5x0.7mm FA-238V 12.000000MHz 22pF +/-20ppm +/-20ppm -30to+85°C
Q22FA23V0052100 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-20ppm +/-30ppm -20to+70°C
Q22FA23V0052700 3.2x2.5x0.7mm FA-238V 12.288000MHz 9pF +/-20ppm +/-20ppm -20to+70°C
Q22FA23V0052900 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-20ppm +/-20ppm -40to+85°C
Q22FA23V0053300 3.2x2.5x0.7mm FA-238V 15.000000MHz 20pF +/-18ppm +/-22ppm -40to+85°C
Q22FA23V0053400 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-20ppm +/-30ppm -40to+85°C
Q22FA23V0053600 3.2x2.5x0.7mm FA-238V 13.107200MHz 12.5pF +/-10ppm +/-10ppm -20to+60°C
Q22FA23V0053900 3.2x2.5x0.7mm FA-238V 12.800000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0054800 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-25ppm +/-30ppm -40to+85°C
Q22FA23V0055300 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-20ppm +/-30ppm -40to+85°C
Q22FA23V0056400 3.2x2.5x0.7mm FA-238V 14.318000MHz 10pF +/-15ppm +/-30ppm -20to+70°C
Q22FA23V0056500 3.2x2.5x0.7mm FA-238V 14.745600MHz 10pF +/-15ppm +/-30ppm -20to+70°C
Q22FA23V0056700 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-50ppm +/-30ppm -40to+85°C
Q22FA23V0057200 3.2x2.5x0.7mm FA-238V 15.750000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA23V0057300 3.2x2.5x0.7mm FA-238V 13.507600MHz 18pF +/-15ppm +/-30ppm -20to+70°C
Q22FA23V0057500 3.2x2.5x0.7mm FA-238V 12.500000MHz 7pF +/-15ppm +/-30ppm -20to+70°C
Q22FA23V0057600 3.2x2.5x0.7mm FA-238V 13.521270MHz 10pF +/-20ppm +/-22ppm -40to+85°C
Q22FA23V0057700 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-20ppm +/-23ppm -40to+85°C
Q22FA23V0057800 3.2x2.5x0.7mm FA-238V 13.824000MHz 18pF +/-10ppm +/-10ppm -20to+70°C
Q22FA23V0058200 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-20ppm +/-30ppm -40to+85°C
Q22FA23V0058300 3.2x2.5x0.7mm FA-238V 13.824000MHz 9pF +/-10ppm +/-30ppm -20to+70°C
Q22FA23V0058400 3.2x2.5x0.7mm FA-238V 12.000000MHz 15pF +/-30ppm +/-30ppm -20to+70°C
Q22FA23V0058500 3.2x2.5x0.7mm FA-238V 13.824000MHz 15pF +/-10ppm +/-16ppm -30to+85°C
Q22FA23V0058600 3.2x2.5x0.7mm FA-238V 12.000000MHz 15pF +/-20ppm +/-20ppm -20to+70°C
Q22FA23V0058900 3.2x2.5x0.7mm FA-238V 15.974400MHz 7pF +/-50ppm +/-50ppm -30to+85°C
無源晶振Q22FA23V0054800汽車電子中控專用晶振,Q22FA23V0051900,耐高溫晶振
生活中常見的高檔游戲機、智能水表、藍牙耳機、電風扇等電子設備都需要用到各種不同類型的晶振，對比汽車的應用場景來看，汽車電子產品對晶振的需求就非常明顯了。
汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
