藍牙AOA定位有源晶振X1G004171002700

來源:http://konuaer.com 作者:康華爾電子 2022年10月14
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

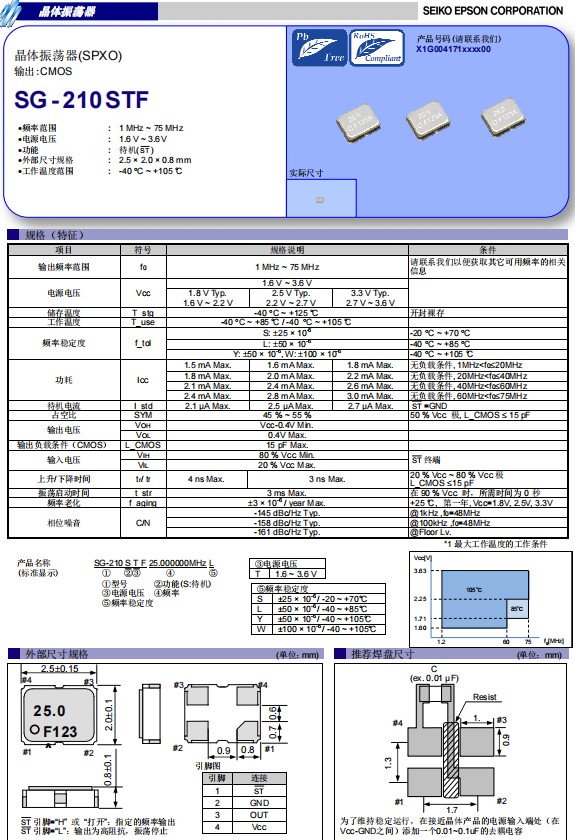

愛普生晶振SG-210STF是一款CMOS輸出石英晶體振蕩器(SPXO)系列。小體積尺寸2.5x2.0mm四腳貼片晶振,有源晶振,1.6V至3.63V的寬工作電壓和-40℃至+105℃的寬工作溫度范圍,頻率范圍1MHz至75MHz,具有超小型,輕薄型,低抖動,低功耗,耐熱及耐環境特性,非常適合物聯網,藍牙AOA定位,可穿戴設備,醫療設備,數據中心,存儲,工業自動化等各種應用。
藍牙AOA定位有源晶振X1G004171002700,X1G004171005900,石英晶體振蕩器
產品編碼 型號 頻率 貼片晶振 輸出波 電源電壓 工作溫度
X1G004171000900 SG-210STF 4.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171001500 SG-210STF 8.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171001600 SG-210STF 10.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171001800 SG-210STF 12.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171001900 SG-210STF 12.288000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171002500 SG-210STF 14.745600MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171002700 SG-210STF 16.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171002900 SG-210STF 20.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171003100 SG-210STF 24.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171003200 SG-210STF 24.576000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171003300 SG-210STF 25.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171003400 SG-210STF 26.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171003500 SG-210STF 27.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171004000 SG-210STF 32.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171004500 SG-210STF 40.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171004600 SG-210STF 48.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171004700 SG-210STF 50.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171005900 SG-210STF 25.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171006100 SG-210STF 12.288000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171006900 SG-210STF 8.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171007500 SG-210STF 33.333300MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171007700 SG-210STF 25.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171007800 SG-210STF 48.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171007900 SG-210STF 50.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171011900 SG-210STF 33.330000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C

X1G004171012000 SG-210STF 33.333300MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 85°C
X1G004171012400 SG-210STF 72.000000MHz 2.50x2.00x0.80mm CMOS 1.710 to 3.630V -40 to 85°C
X1G004171012600 SG-210STF 50.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171012700 SG-210STF 32.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171015400 SG-210STF 16.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171015600 SG-210STF 24.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171016300 SG-210STF 12.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171019700 SG-210STF 24.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171020600 SG-210STF 40.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171021800 SG-210STF 20.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -20 to 70°C
X1G004171023800 SG-210STF 20.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171024400 SG-210STF 26.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171025000 SG-210STF 27.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171028000 SG-210STF 12.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171029900 SG-210STF 4.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171030000 SG-210STF 33.330000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171036500 SG-210STF 10.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171036600 SG-210STF 12.288000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171036700 SG-210STF 14.745600MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171036800 SG-210STF 24.576000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171036900 SG-210STF 48.000000MHz 2.50x2.00x0.80mm CMOS 1.620 to 3.630V -40 to 105°C
X1G004171037000 SG-210STF 72.000000MHz 2.50x2.00x0.80mm CMOS 1.710 to 3.630V -20 to 70°C
X1G004171037100 SG-210STF 72.000000MHz 2.50x2.00x0.80mm CMOS 2.250 to 3.630V -40 to 105°C
藍牙AOA定位有源晶振X1G004171002700,X1G004171005900,石英晶體振蕩器
石英晶體振蕩器(以下簡稱晶振)是利用石英晶體壓電效應而制成的器件,它的作用是輸出高精度和高穩定度的脈沖信號,為整個電路提供時序基準。我們知道,現在電路中有越來越多的時序電路,它們之間的協同運行必須要有一個時間基準,才能統一一致的行動,就像電視劇里特種行動小隊在出發前都要對下表一樣,晶振在系統中起的作用就如同隊長的手表,它如果穩定性或準確性不好的話,那整個系統就會錯誤頻出,故障率很高。所以又把晶振稱為單板的“心臟”。 石英晶體振蕩器是由品質因數Q極高的石英晶體諧振器和振蕩電路組成。晶體的品質因數、切割取向、晶體振子的結構及電路形式等,共同決定振蕩器的性能。國際電工委員會(IEC)將石英晶體振蕩器分為4類:普通晶體振蕩(SPXO),電壓控制式晶體振蕩(VCXO),溫度補償式晶體振蕩(TCXO),恒溫控制式晶體振蕩(OCXO)。目前發展中的還有數字補償式晶體振蕩(DCXO)以及混合式的VOCXO振蕩等。
